In Germany, JWELL supplied an HDPE/PP plate extrusion line. The line is rated for a stated capacity of 1,000 kg/h and is configured for a finished product width of 2,200 mm, producing HDPE/PP plates (wide-format rigid plate). The project highlights a wide 2,200 mm finished plate width with an output of 1,000 kg/h. The complete scope covers the extrusion section, the three-roll polishing and cooling calender for wide-format plate and the corresponding downstream handling equipment. Final installation, commissioning and acceptance data will be published after confirmation with the customer.
Project: HDPE/PP plate extrusion line
Location: Germany
Completion Year: 2026
Customer Industry: Industrial
Raw Material: HDPE and PP resin
Production Line: HDPE/PP plate extrusion line
Stated Production Capacity: 1,000 kg/h
Finished Product Width: 2,200 mm
Finished Product: HDPE/PP plates (wide-format rigid plate)
Main Applications: chemical- and corrosion-resistant tank and container lining; industrial plate and board converting; construction and fabrication stock; protective and structural plate applications
This project required a production solution for HDPE/PP plate in Germany. The customer operates in Europe and commissioned the line in 2026 to supply HDPE/PP plates (wide-format rigid plate) for chemical- and corrosion-resistant tank and container lining and related applications.
Compared with standard-width flat extrusion, a line at 2,200 mm finished width with a stated output of 1,000 kg/h places higher demands on melt distribution, thickness control, cooling, web handling and the coordination of the complete production line.
[Customer name, company profile and target end-market details to be confirmed - the case can be published anonymously if preferred.]"
- An HDPE/PP plate extrusion line with a stated output of 1,000 kg/h
- Finished product width of 2,200 mm
- Consistent thickness control and stable product quality across the full width
- Stable continuous operation suitable for routine industrial production
- Coordinated three-roll polishing and cooling calender for wide-format plate, haul-off and downstream handling equipment
- Technical support for the overseas installation and commissioning phase
- [Additional customer-specific requirements and quality standards to be confirmed]

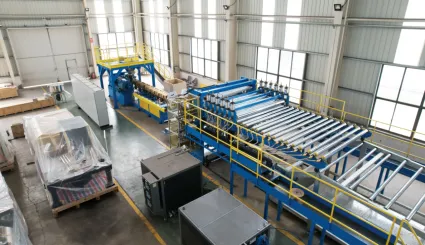

JWELL supplied an HDPE/PP plate extrusion line solution based on its JWELL wide-format HDPE/PP plate extrusion platform. The line combines the extrusion system with a flat die, three-roll polishing and cooling calender for wide-format plate, cooling and haul-off equipment and the downstream finishing section. The individual sections operate as one coordinated system to support consistent product formation and stable production.
The line was proposed at a stated output of 1,000 kg/h for a finished width of 2,200 mm. The final screw configuration, die size and downstream layout are defined during project review according to the raw material formulation, product specification and factory conditions. [Extruder models and detailed customization decisions to be confirmed.]
| Project Item | Configuration |
| Finished Product | HDPE/PP plates (wide-format rigid plate) |
| Product Width | 2,200 mm |
| Stated Capacity | 1,000 kg/h |
| Raw Material | HDPE and PP resin |
| Main Extruder(s) | JWS180 single-screw extruder |
| Feeding and Dosing System | Automatic feeding and dosing per JWELL standard |
| Melt Filtration | Screen changer / melt pump as configured for the material |
| Flat Die | 2,500 mm |
| Forming Section | Three-roll polishing and cooling calender for wide-format plate |
| Cooling and Haul-Off | Cooling section with synchronized haul-off |
| Downstream Finishing | Per product: cutting/stacking or automatic winding |
| Control System | PLC + HMI automatic line control |
| Project Market | Germany |
Note: The table above is a reference configuration for the corresponding JWELL extrusion platform. Final equipment list and model numbers depend on raw material formulation, product specification, target capacity and site conditions.
"Automatic weighing and dosing system (HDPE/PP with regrind and additives) → Vented single-screw extrusion →Automatical T-die → Vertical Three-roll calender → Thickness gauging → Edge trimming → Haul-off → Cooling section → Automatic sacking and stacking devices
HDPE and PP are generally processed without drying; regrind from edge trimming and off-cuts is proportioned back into the virgin material stream. A vented single-screw extruder removes moisture and volatiles, and the melt is filtered and metered before entering a wide flat die matched to the finished width of 2,200 mm.
Uniform melt distribution across the wide die, combined with a three-roll polishing stack, controls the flatness, surface finish and thickness of the plate and board. For thicker board, a downstream cooling section slows the cooling rate to prevent warpage and residual internal stress. Inline thickness gauging, edge trimming, a haul-off with flying-saw cut-to-length and an automatic stacking station complete the line for dimensionally stable HDPE/PP boards.
Note: The final line configuration can be adjusted according to the raw material formulation, product thickness, surface structure, roll width, production capacity and the level of automation required."
"The installation and commissioning scope for this project covers the main extrusion system, die and forming section, cooling and haul-off equipment and the downstream finishing or winding unit.
During trial production the technical team checks the coordination of the complete line, including extrusion stability, melt distribution across the working width, cooling, haul-off synchronization and finished-roll or cut-plate quality.
Installation duration: 7 days
Commissioning duration: 5 days
Technical support: [On-site / Remote / Both]
Acceptance method: [FAT / SAT / Customer production test]
Operator training: [Operation / Maintenance / Process adjustment]"
Following installation and parameter adjustment, the production line undergoes trial production and project verification. The verification process focuses on production capacity, product width, thickness control, continuous operating stability and finished-product quality.
| Verification Item | Project Target | Verified Result |
| Production Capacity | 1,000 kg/h | 1,000 kg/h |
| Finished Product Width | 2,200 mm | 2,200 mm |
| Product Thickness | According to customer specification | 3-30mm |
| Continuous Test Run | Stable continuous production | 72 hours |
| Final Acceptance | Customer project requirements | [Passed FAT/SAT] |
"Depending on the raw material formulation and the finished product specification, the output of this line can be used for:
- chemical- and corrosion-resistant tank and container lining
- industrial plate and board converting
- construction and fabrication stock
- protective and structural plate applications
[To confirm: actual product dimensions, surface type, layer structure, roll/cut length and the applicable product standard.]"
Q: What is the capacity of the Germany HDPE/PP plate project?
A: The stated production capacity of this project is 1,000 kg/h.
Q: What is the finished product width of the Germany HDPE/PP plate line?
A: The line is configured for a finished product width of 2,200 mm.
Q: Can the same line run both HDPE and PP plate?
A: The line is described for HDPE/PP plate production. Whether both materials share one screw/die set depends on the final specification and should be confirmed at project review.
Q: What information is needed to configure a similar extrusion line?
A: Buyers should provide the required product width, thickness range, raw material formulation, layer structure, surface type, target capacity, roll dimensions, electrical standard and workshop limitations. JWELL can then evaluate the extruder and downstream equipment configuration.
Q: What is the delivery and installation time for a similar project?
A: [To be confirmed - delivery time depends on line configuration, customization scope and the production schedule at the time of order.]
