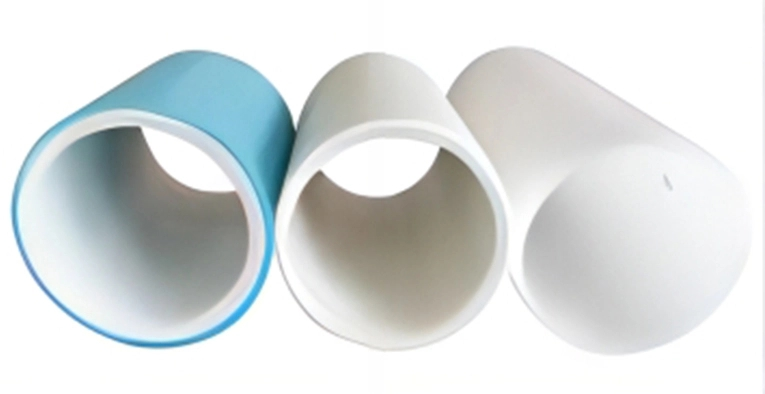

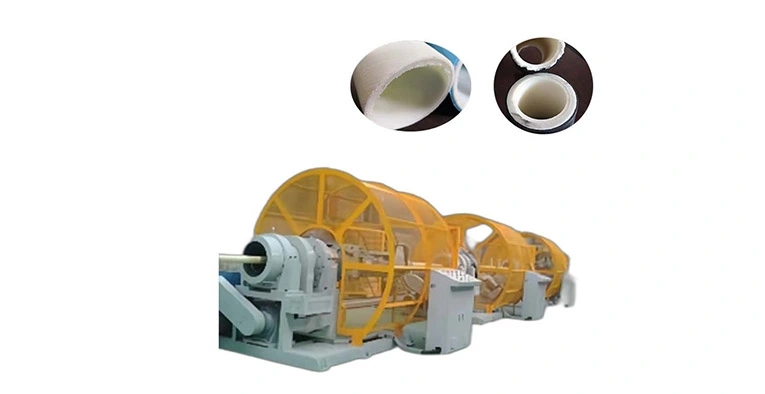

The thermoplastic reinforced pipe RTP has three layers: the inner layer of the composite pipe extrusion line is anti-erosion and wearing-resistant PE pipe; the middle layer is reinforced twisting layer (the material is high-intension synthesized fiber, or glass fiber, carbon fiber or fine metal thread); the outer layer is PE for protection use.
The thermoplastic reinforced pipe RTP has three layers: the inner layer is anti-erosion and wearing-resistant PE pipe; the middle layer is reinforced twisting layer (the material is high-intension synthesized fiber, or glass fiber, carbon fiber or fine metal thread); the outer layer is PE for protection use. The most popular reinforce material is Aramid fiber. The pressure of Aramid fiber reinforced pipe is up to 9-14Mpa. The explode pressure can be 40Mpa.
| Type | Model(mm) | Extruder | Output(kg/h) | Power（kw） |
| JWG-RTP-160 | Φ63-160 | JWSGX65/38 | 120-300 | 160 |
| JWG-RTP-250 | Φ75-250 | JWSGX75/38 | 300-500 | 210 |
| JWG-RTP-315 | Φ110-315 | JWSGX75/38 | 300-500 | 210 |
