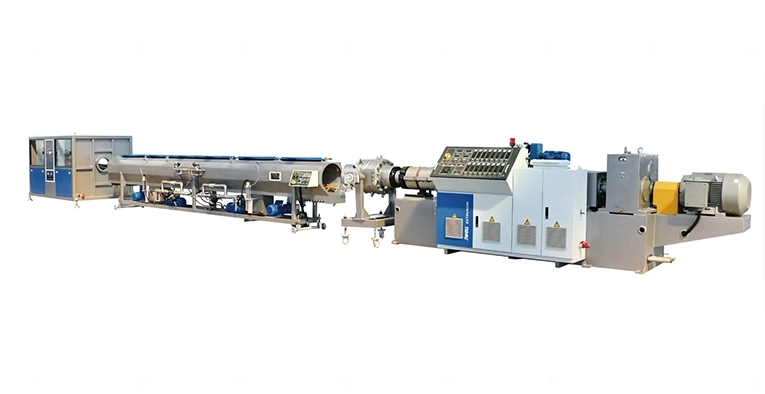

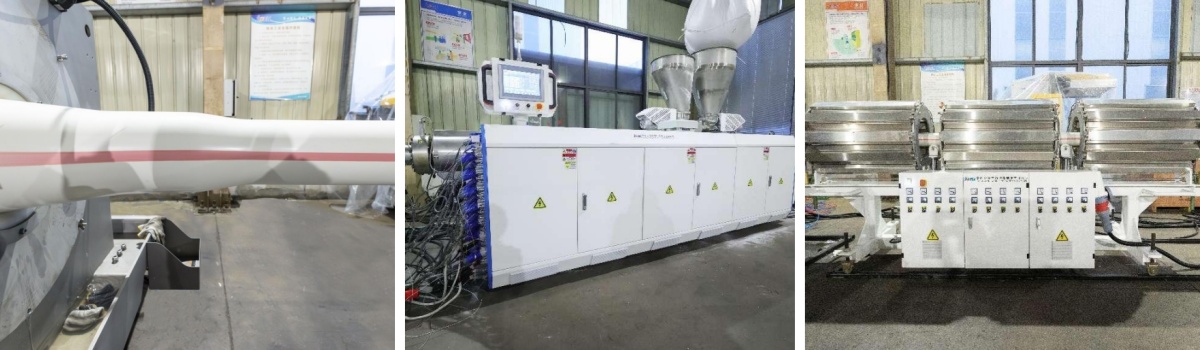

PVC Solid Pipe Extrusion Line

Jwell Machinery provides production lines with different material formulations such as CPVC, UPVC, PVC-UH, PVC-M, PVC-O and can design single-layer and multi-layer pipe production equipment according to different uses of pipes.

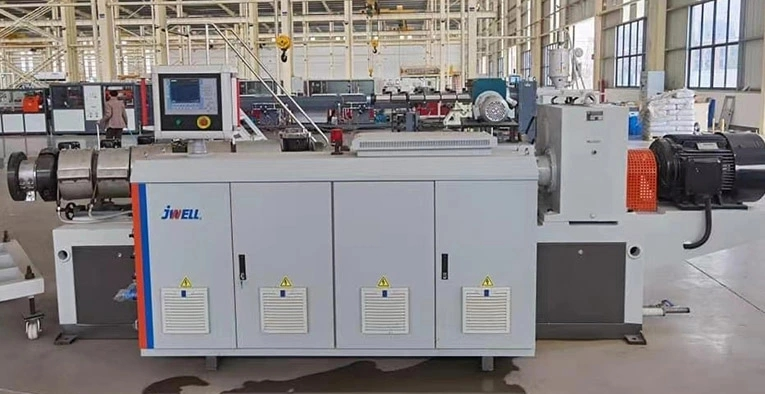

Description PVC Pipe Extruder


Jwell Machinery provides production lines with different material formulations such as CPVC, UPVC, PVC-UH, PVC-M, PVC-O and can design single-layer and multi-layer pipe production equipment according to different uses of pipes. The production line adopts superwear resistant alloy screw barrel and chrome plated high polishing mould with fast production speed,which makes the material easy to form, plasticize uniformly, with stable operation and convenient control.

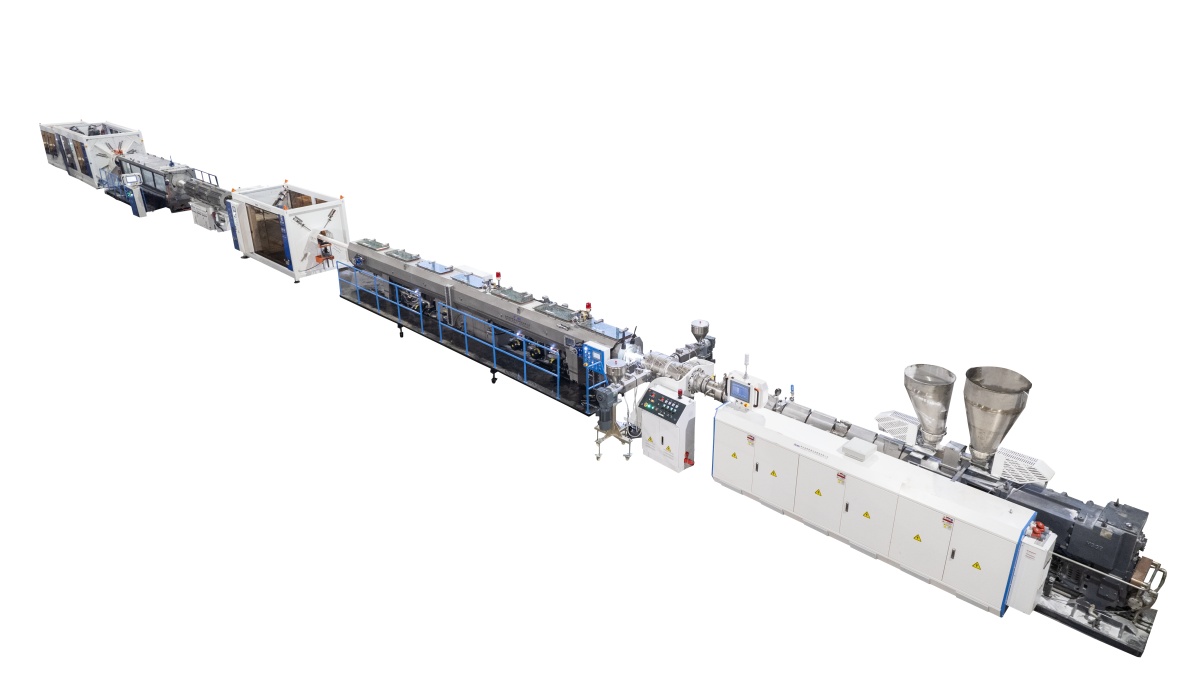

Two or three layer PVC pipes can be co-extruded by using 2 or more than 2 sets of twin screw extruders.The middle layer of the pipe is made of high calcium PVC or PVC foaming material.

Specification PVC Pipe Extruder


Line TypeExtruder TypePipe Range (mm)Max output (m/min)Total power (kw)
JWG-PVC32 (4 strand)SJZ65/13216-32250~300104
JWG-PVC63 (2 strand)SJZ65/13220-63250~300105
JWG-PVC110 (2 strand)SJZ80/15650-110300~400145
JWG-PVC160SJZ65/13263-160250~300100
JWG-PVC250SJZ65/13275-250250~300110
JWG-PVC315SJZ80/156200-315300~400180
JWG-PVC450SJZ80/173200-450450~500245
JWG-PVC630SJZ92/188315-630650~750350
JWG-PVC800SJP130/26400-8001000~1300420
JWG-PVC1000SJP135/31500-10001150~1300460
JWG-PVC1200SJP135/31800-12001150~1300550


TypeJWDGP-25JWDGP-50JWDGP-63JWSB150
Screw diameter (mm)Φ45Φ65Φ65Φ75
L/D30:133:133:133:1
Total power (kw)507070100
Pipe Spec (mm)Φ8-20Φ12-50Φ12-63Φ90-150
Max Speed (m/min)2515105


PVC-O Pipeline


Line TypeExtruder TypePipe Range (mm)Max Speed (m/min)Max Capacity (kg/h)
JWG-250SJZ80/156110-2504100-220
JWG-400SJZ80/156200-4002150-300
JWG-630SJZ92/188315-6301280-450
