PVC Window Profile Extrusion Line

JWELL offers various kinds of profile extrusion lines at competitive factory price. Durable, efficient and affordable. Choose us as your reliable PVC Window Profile Extrusion Line manufacturer! Contact us now!
Email Us

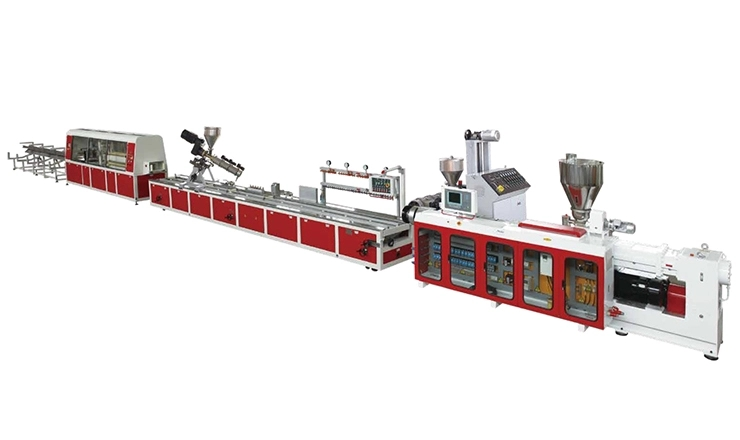

pvc window profile extrusion line

This PVC Window Profile Extrusion Line is suitable for the production of PVC material door and window series profiles, sheets, micro-foam profiles, micro-foam decorative sheets, etc. It adopts imported AC frequency conversion or DC speed regulation to drive, and the temperature control instrument adopts imported brand. The calibration unit's pump and haul off adopt high-quality products, it is easy to maintain, after replacing the screw barrel and mold, the foam profile can be directly extruded, and the effect is better than that of a single screw. As a professional profile extrusion equipment manufacturer, our PVC Window Profile Extrusion Line has the advantages of uniform plasticization, low shear rate, high output, and long service life and so on.


Specification of PVC Window Profile Extrusion Line


Model

YF240

YF240

YF240A

Max.width(mm)

240

240

240

Extruder model

SJP75/28

SJP93/28/31

SJP110/28

Max.capacity(kg/h)

150-250

250-400

400-500

Extruder power(kw)

37

55

75

Cooling water(m3/h)

7

8

10

Compressed air(m3/min)

0.6

0.6

0.8


Project Case of PVC Window Profile Extrusion Line
