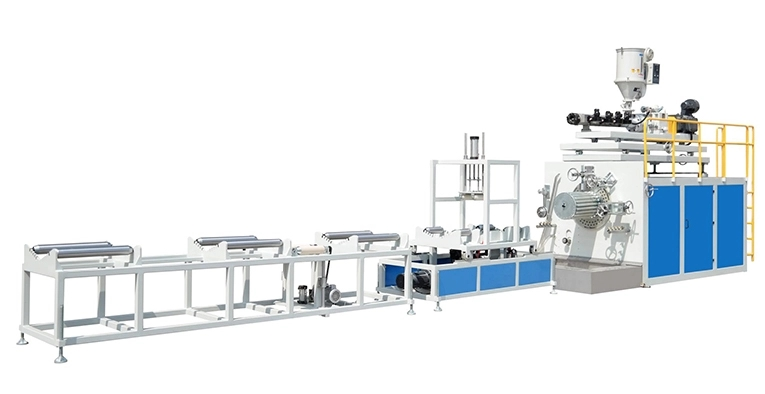

Large Diameter HDPE Hollow-Wall Coiled Pipe Extrusion Line

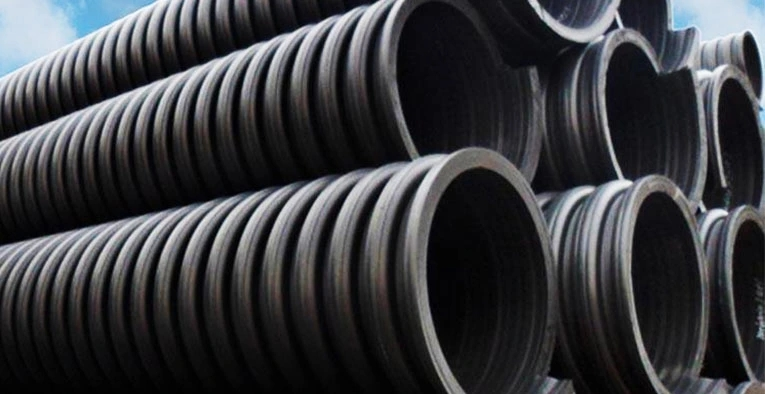

Large diameter HDPE hollow-wall coiled pipe is one of the best replacement for cement pipe. JWELL is one of the earliest qualified suppliers for this line.

Performance and Advantage of HDPE Pipe Extrusion Machine


Large diameter HDPE hollow-wall coiled pipe is one of the best replacement for cement pipe.JWELL is one of the earliest qualified suppliers for this line.We have strong technical advantage and rich experience in pipe production providing excellent pipe machine characterised of stable performance and easy operation.The comprehensive indexes of JWELL Machine reach the domestic top level.


1. the main extruder adopts efficient single screw extruder ensuring high speed and perfect quality extrusion;
2. composite head is used with spiral rotational molding type with ingenious structure and unique design to ensure product quality;
3. pipe product has high ring stiffness,mining used anti-static mashgas drainage and exhaust pipes can be produced by this machine;
4. special pipe connection with convenient operation and economic construction.

Technical Parameter of HDPE Pipe Extrusion Machine


Type

Diameter(mm)

Extruder

Main motor power

Max output

JW800

200-800

JW75X30/JW55X30

45/18.5

400

JW1200

300-1200

JW90X30/JW65X30

75/30

550

JW1600

800-1800

JW100X30/JW75X30

110/45

650

JW2400

1200-2400

JW120X30/JW75X30

132/55

750

JW3000

1800-3000

JW150X30/JW90/30

200/90

900


Video of HDPE Pipe Extrusion Machine
