PVC Pipe fittings & joints

Global Business

Jwell Mingjia Company is a high-tech enterprise specializing in the R&D, production, and sales of extra-large PVC pipe fittings. We are committed to providing high-quality piping solutions for municipal engineering, chemical industry, agricultural water conservancy, and other fields. Our product range covers multiple series including flanges, tees, elbows, and more, widely applied in drainage, water supply, chemical transportation, and other scenarios.


Creation Solution

We are dedicated to solving the problems of short service life and difficult installation of metal pipe fittings. By utilizing new materials and advanced technologies, we produce extra-large PVC pipe fittings as a superior alternative to metal pipe fittings.

TECHNICAL CAPABILITY

PVC vs. Metal Pipe Fittings Comparison

ltemspvc pipe fittingmetal pipe fitting
weight1/3 Lighterheavy
Corrosion ResistanceoutstandingRequires Anti-corrosion Treatment
lifespan100 years20-30 years
Eco-friendlyrecyclabledifficult to recycle


Future Technology Trends

Future Technology Exploration:

  • Intelligent Manufacturing: Developing intelligent production lines to enhance product precision and consistency.


New Material Exploration

  • Exploring the application of nanocomposite materials in PVC pipe fittings to enhance product performance.


Parameters of PVC Pipe fittings & joints

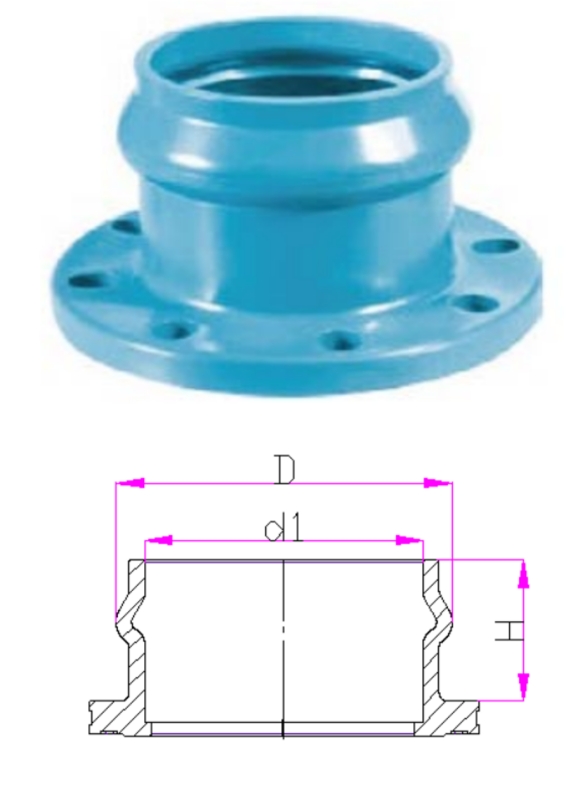

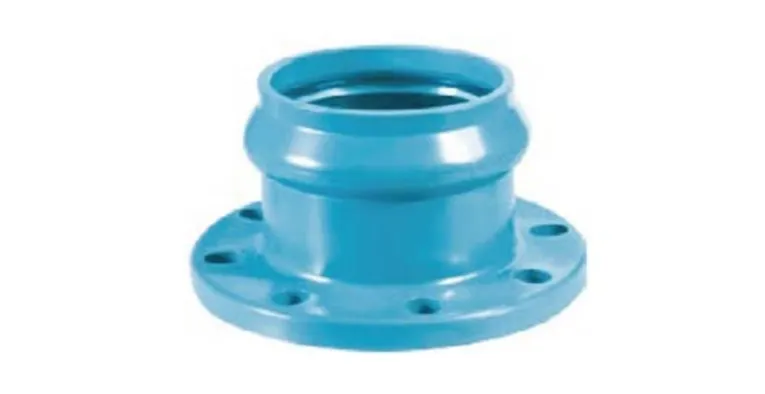

Socket Flange




DN
PNd1
D
H
500
1.6
504706
310
6301.6635
890390
800
1.6814981496
10001.610181226
620
12001.61222
1472
744

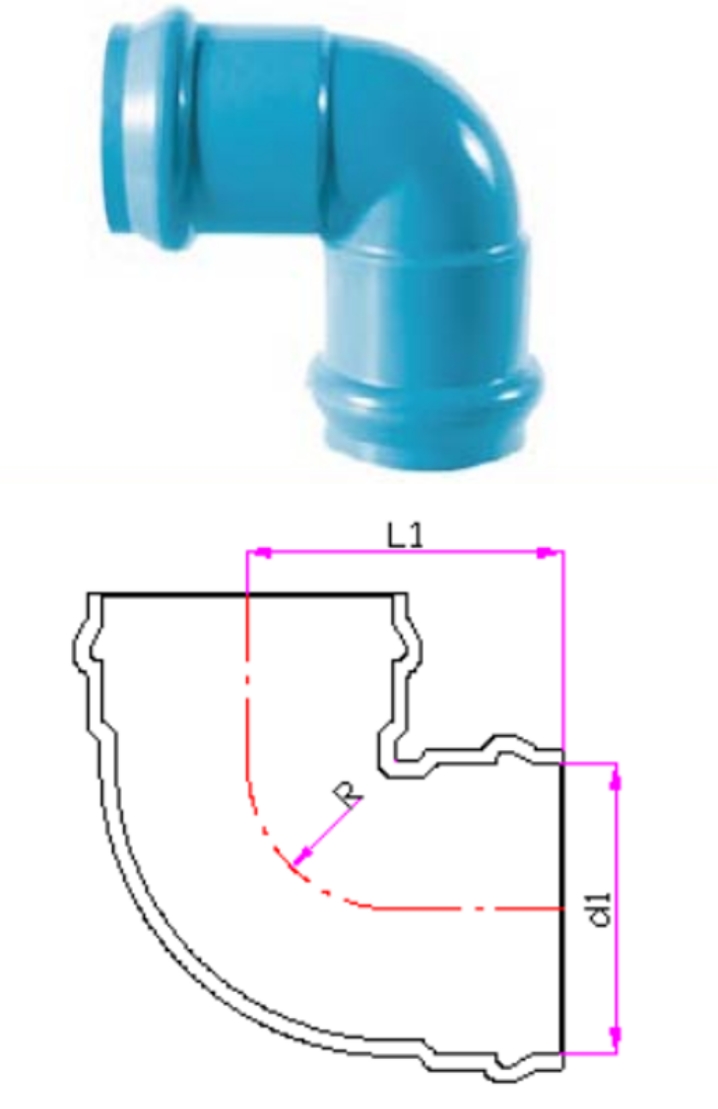

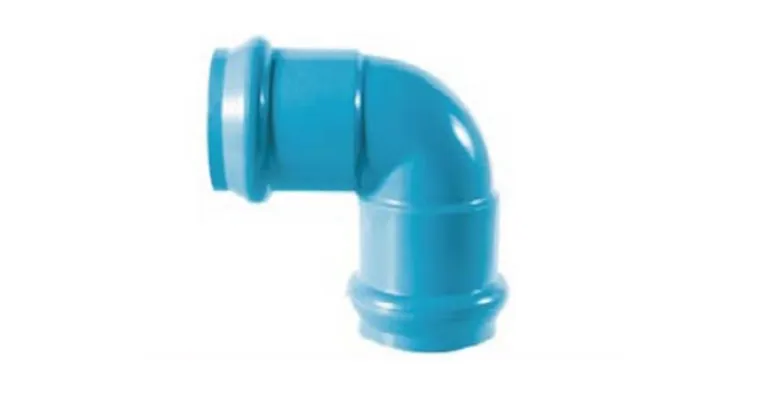

Double Socket 90° Elbow




DN
PNd1
L1
R
500
1.6
504555
250
6301.6634
700315
800
1.6814888400
10001.610181110
500
12001.61222
1328
600

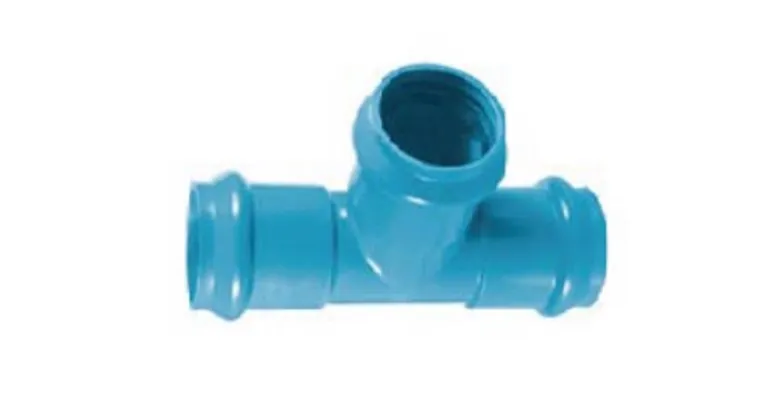

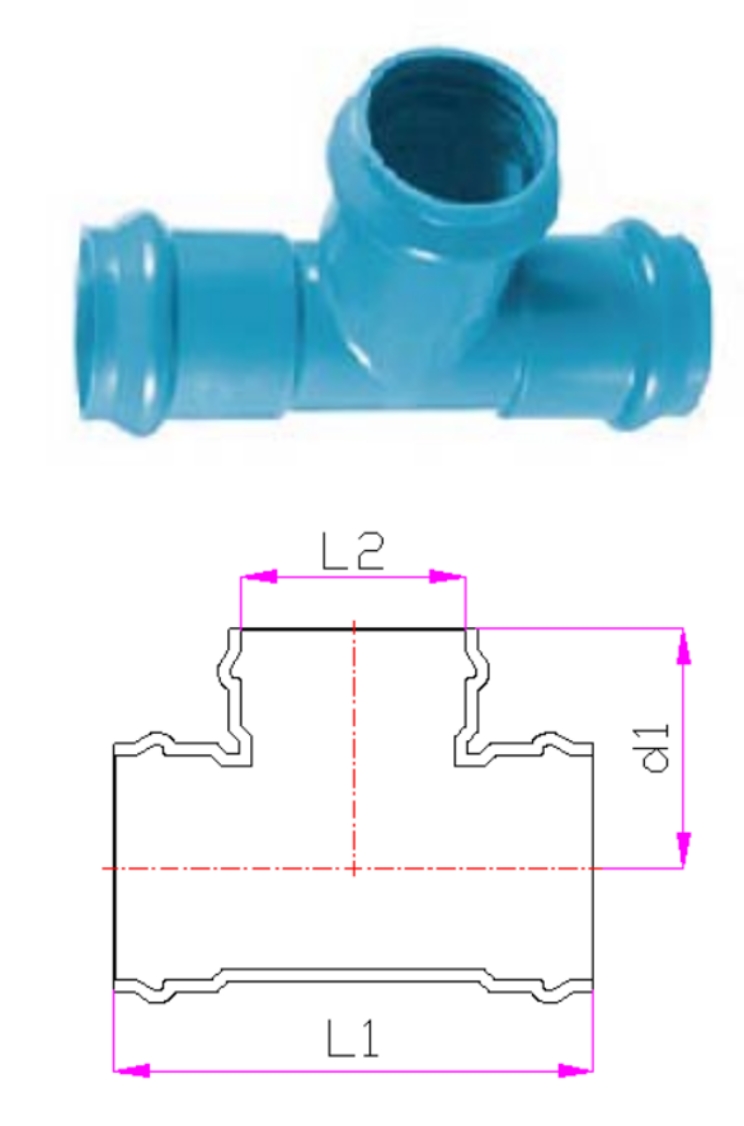

Triple Socket Equal Tee



DN
PNd1
L1
L2
500
1.6
5041092
546
6301.6634
1376688
800
1.68141747870
10001.610182184
1092
12001.61222
2621
1310

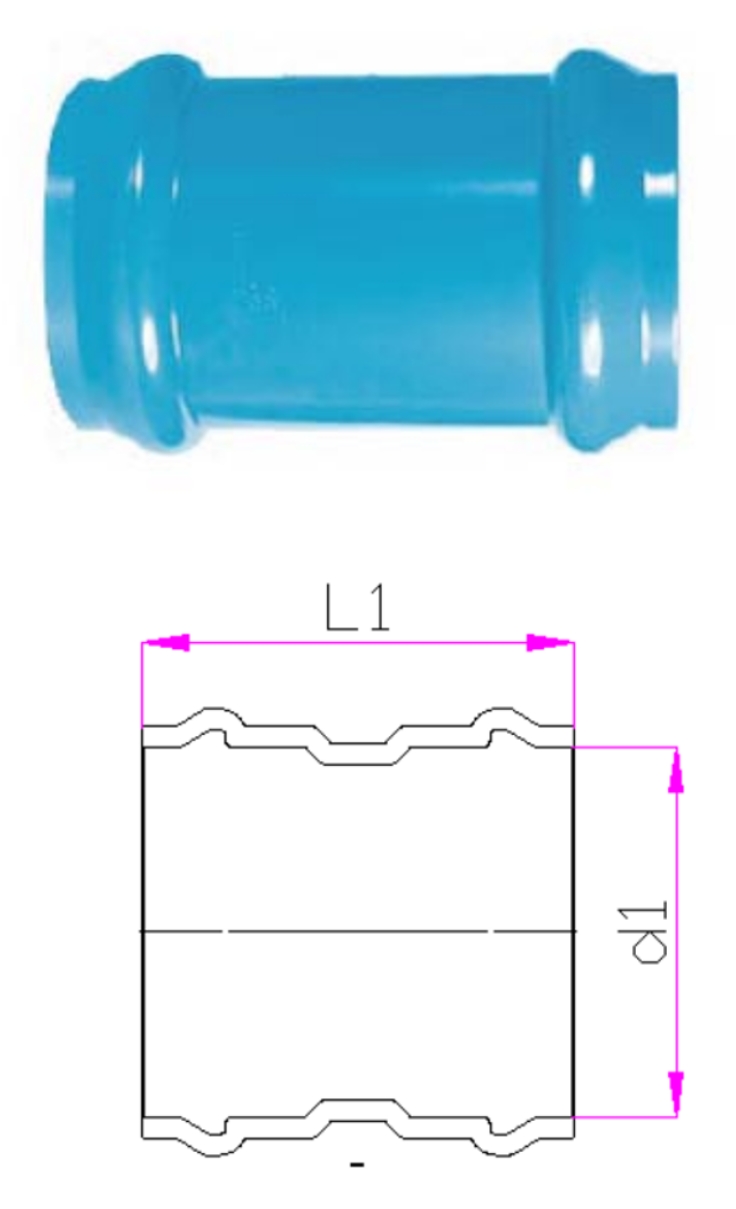

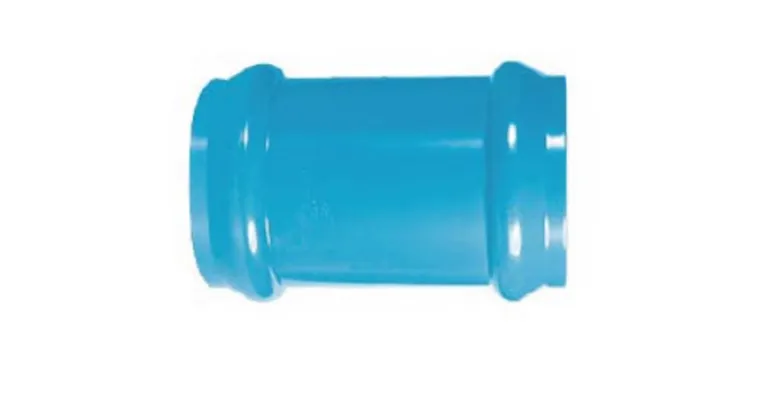

Double Socket Coupling



DN
PNd1
L1
500
1.6
504540
6301.6634
630
800
1.6814947
10001.610181184
12001.61222
1421

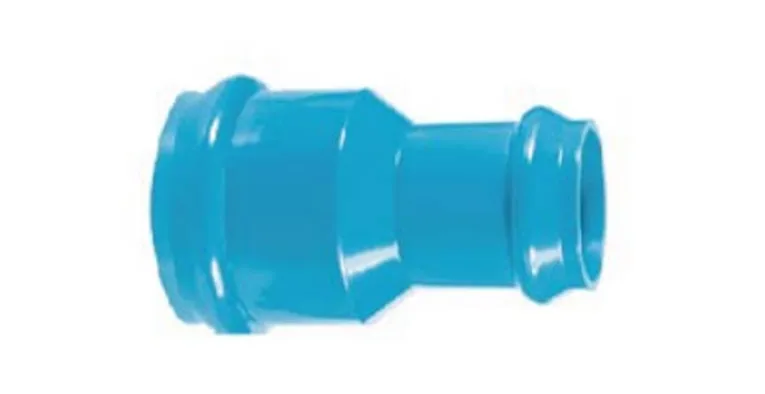

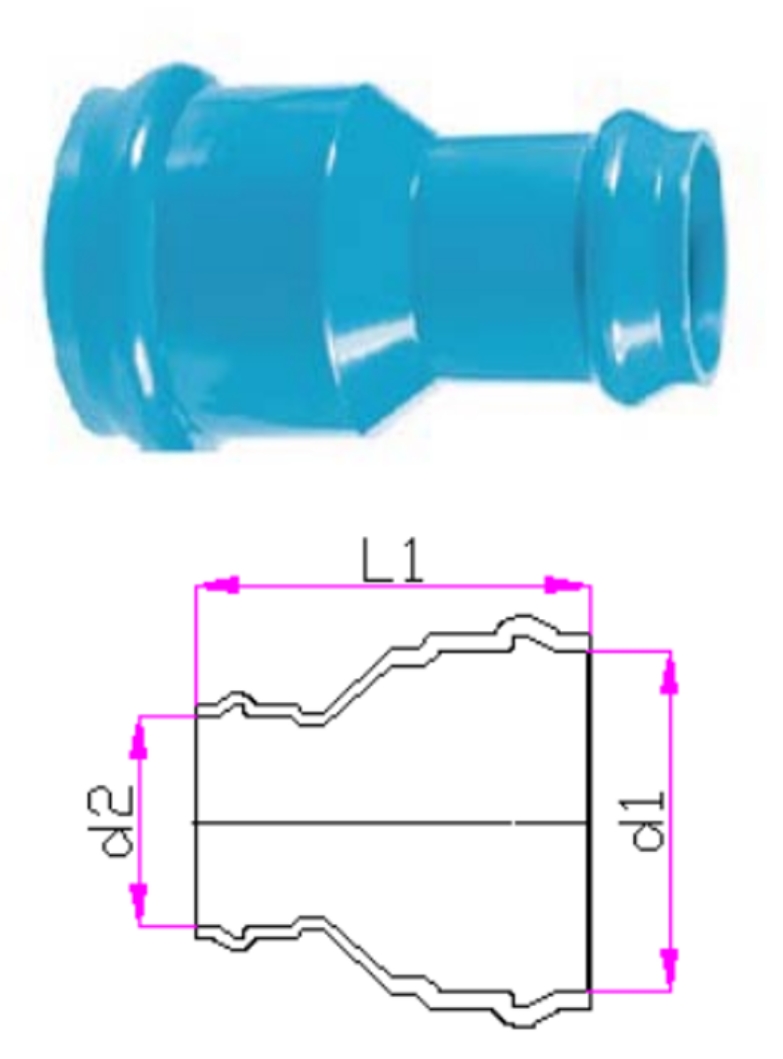

Double Socket Coupling




DN
PNd1
d2L1
500*400
1.6
504400
585
630*4001.6634
400670
