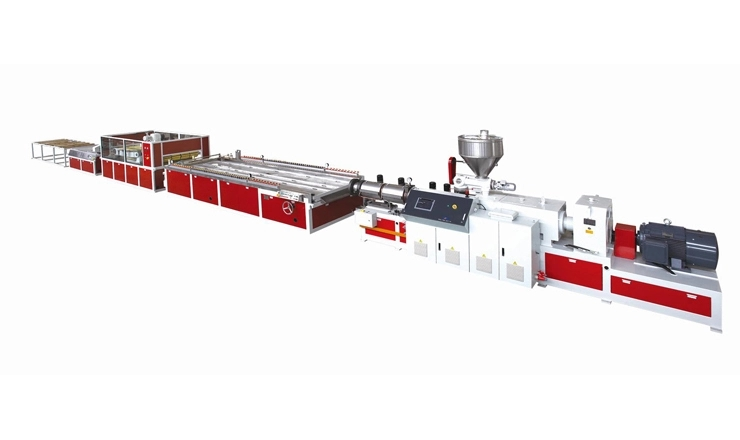

The pvc profile extruder machine can produce the PVC wood-plastic door of the width between 600 and 1200. The device has SIZ92/188 conical twin screw extruder, calibration, hall-off unit, cutter, such as stacker, targeting the advanced eguipment, well-produced, the main electrical control devices are well-known global brands, extrusion system design imbibes the technic of for-eign country in this line, and it has a highly dependabilityand wearness. The other scheme have two types: it's supply for the custom to choose: YF1000 and YF1250.
Model | YF800 | YF1000 | YF1250 |
Production width (mm) | 800 | 1000 | 1250 |
Extruder model | SJZ80/156 | SJZ92/188 | SJZ92/188 |
Type | YF180 | YF300/400 | YF600 |
Extruder power(KW) | 55 | 132 | 132 |
Max of extrusion capacity (Kg/h) | 250-350 | 400-600 | 400-600 |
Cooling water (m3/h) | 12 | 15 | 15 |
Compressor air(m3/min) | 0.8 | 1 | 1 |
