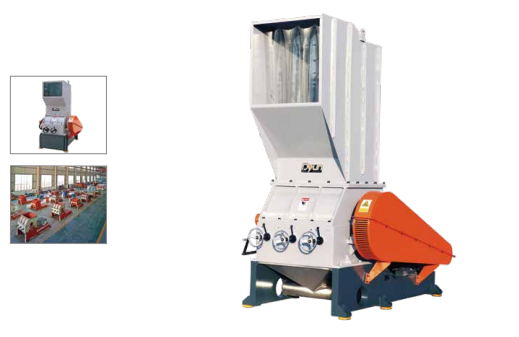

Dyps Series Light Crusher of Plastic Crusher
DYPS series light crusher is applicable to broken small pipes, profiles, plate sheets, injection molding glands, and all kinds of plastic packaging containers and thin film, etc. JWELL can also provide crushing auxiliary device according to customer's requirements, such as suction unit collector, feeding conveyor belt and metal separator etc.
| Model | Feed mouth size (mm) | Main motor power (kw) | Rotor Blade (pcs) | Fixed Blade (pcs.) | Rotor Dia (mm) | Output (kg/h) |
| DYPS-450 | 450x350 | 11 | 6 | 2 | Φ300 | 200 |
| DYPS-560 | 560x400 | 15 | 6 | 2 | Φ400 | 300 |
| DYPS-700 | 700x700 | 37 | 6 | 4 | Φ500 | 400 |
| DYPS-800 | 800x800 | 45 | 6 | 4 | Φ600 | 500 |

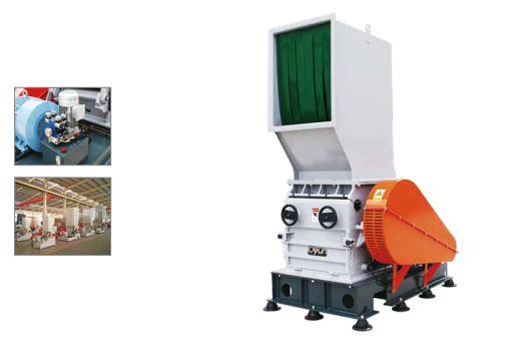

DYPS-Z Series Heavy Crusher of Plastic Crusher
DYPS-Z Series Heavy Crusher is designed specially for the recycling material which is not easy to be crushed and thickness 3-30mm. Cabinet: The main box of DYPS-Z series crusher, processed by CNC Machine exactly with the steadfast welding structure. Main shaft, is processed with high quality steel after verifying the balance.
| Model | Feed mouth size (mm) | Main motor power (kw) | Rotor Blade (pcs) | Fixed Blade (pcs.) | Rotor Dia (mm) | Output (kg/h) |
| DYPS-450 | 450x350 | 11 | 6 | 2 | Φ300 | 200 |
| DYPS-560 | 560x400 | 15 | 6 | 2 | Φ400 | 300 |
| DYPS-700 | 700x700 | 37 | 6 | 4 | Φ500 | 400 |
| DYPS-800 | 800x800 | 45 | 6 | 4 | Φ600 | 500 |
DYPS-G Series Heavy Pipe Crusher of Plastic Recycling Machine
DYPS-G series heavy pipe crusher can crush middle diameter pipe directly without shredding in advance. The special design of the tool holder and the main shaft can meet the requirements of shredding various types of plastic pipes, profiles, films, sheets and large solid materials. It is economical equipment wide versatility, practicality, easy operation and durability.
DYPS-X/M Series Profile/WPC Special Crusher of Plastic Recycling Machine
DYPS-X/M Series Profile/WPC Special crusher is specially designed. The feeding hopper, which is almost parallel to the ground, makes feeding of longer materials extremely simple and convenient. Because the rotor of the machine can automatically grasp the material to-be-broken, there is no material blockage.
DYPS-P Series Sheet Special Crusher of Plastic Recycling Machine
DYPS-T Series Tray/Plate special crusher is mainly for crushing wide but thin plastic products. It has a dedicated main shaft and unique feeding hopper, which is easy to feed trays and wide plate products in.
