WPC Quick Assembling Wall Panel Line

JWELL offers various kinds of profile extrusion lines.
Email Us

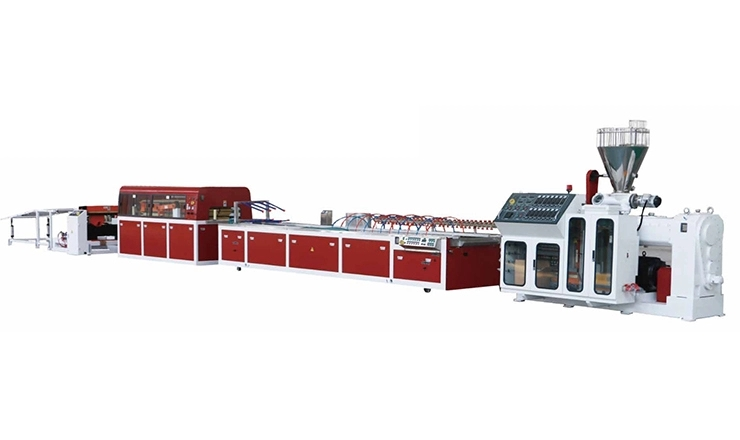

profile extruder

The machine is used for pollution WPC decoration product, which is widely used in house and public decoration field, features non-polution, long service lifetime, heat insulation, anti-fire, easy clean and maintanance, easy change and recycleable. It can be high quality decoration material for ceiling, door frame, window frame, sound proof and heat insulation.


Specification of Profile Extruders

Extruder TypeSJZ51/105SJZ65/132SJZ80/156
Production Width (mm)180300/400600
Motor Power (kw)223755
TypeYF180YF300/400YF600
Output (kg/h)80-100150-200300-400
Cooling water (m3/h)678
Compressor air (m3/min)0.60.60.6


Project Case of Profile Extruders
