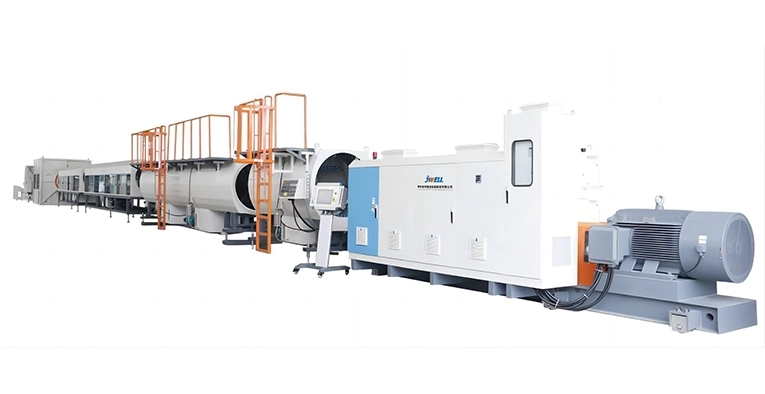

Large Size HDPE Solid Pipe Extrusion Line

Whether you are processing water supply or water drainage, JWELL has everything you need for producing PE plastic pipes from 16mm to 2000mm.

Description of HDPE Pipe Extruder Machine


The HDPE/MDPE water supply and gas supply pipe extrusion line developed by JWELL company is featured of unique structure, high automation, easy operation and reliable continuous manufacture performance. Pipe produced by our machine has the moderate rigidity&strength, good flexibility, creep resistant, environmental stress crack resistance and favorable hot melting property. As a result, this pipe is considered as the first choice for water and gas transportation system in cities. Add more extruders and replace some units for the production of multi-functional polyethylene pipes,such as two-layer pipes with two extruders, three-layer pipes with two machines or three machines.

Production Line of HDPE Pipe Extruder Machine

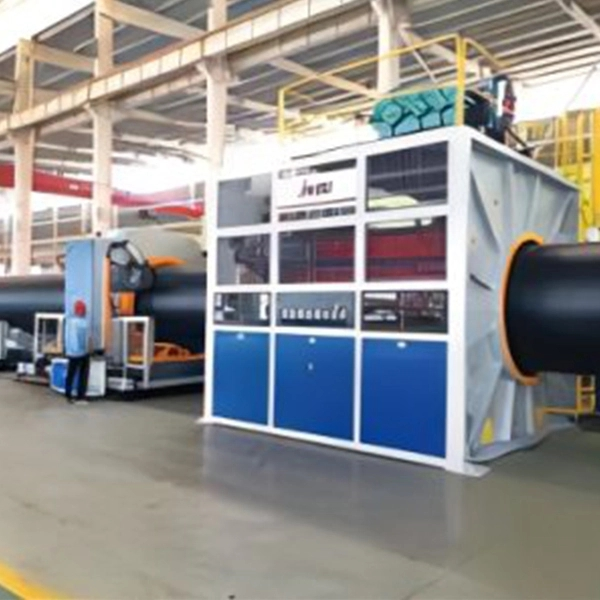

extruder application

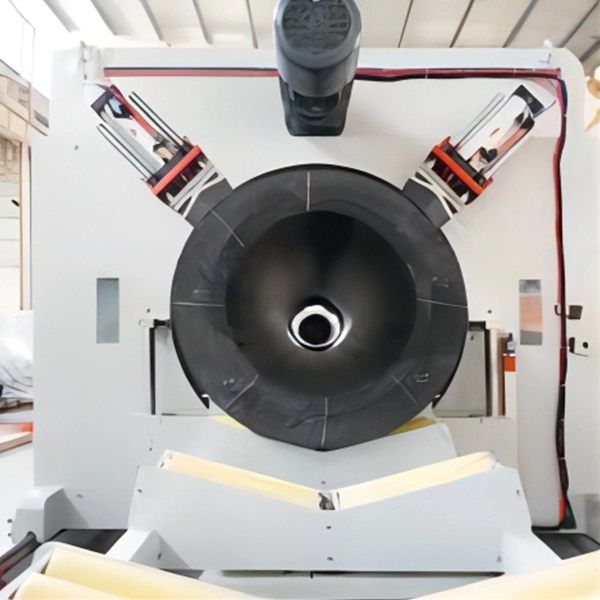

extruder definition

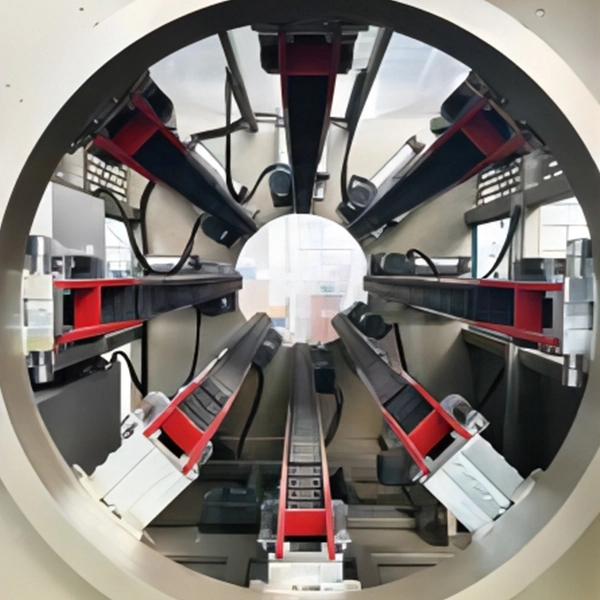

extruder diagram

Specification of HDPE Pipe Extruder Machine


TypeDiameter(mm)ExtruderOutput(kg/h)Power(kw)
JWGPE-800φ400~φ800JWS90/38800-1100630
JWGPE-1000φ500~φ1000JWS120/38900-1200700
JWGPE-1200φ630~φ1200JWS90/38x2900-1500890
JWGPE-1600φ1000~φ1600JWS120/38×21000-17001100
JWGPE-2500φ1400~φ2500JWS120/38×2 or 150/38×21500-20001350
JWGPE-3000φ2000~φ3000JWS150/38×22000-25001550
